factory customized Lubricating Fluids 4-ball Wear Tester - DRK133 Heat Seal Tester – Drick
Short Description:
DRK133 Heat Seal Tester seals the specimen to determine the seal parameters of basic film, laminated films, coating paper and other heat sealing laminated films according to the requirement of relative standards. The seal parameters include heat seal temperature, dwell time, and the pressure of heat seal. Heat seal materials that have different melting point, heat stability, fluidness, and thickness of could show various heat seal properties, which cause obviously different seal technique. Us...
factory customized Lubricating Fluids 4-ball Wear Tester - DRK133 Heat Seal Tester – Drick Detail:
DRK133 Heat Seal Tester seals the specimen to determine the seal parameters of basic film, laminated films, coating paper and other heat sealing laminated films according to the requirement of relative standards. The seal parameters include heat seal temperature, dwell time, and the pressure of heat seal. Heat seal materials that have different melting point, heat stability, fluidness, and thickness of could show various heat seal properties, which cause obviously different seal technique. Users can obtain standard and accurate heat seal index by DRK133 Heat Seal Tester.
Product Features
Micro-computer control; LCD display;
Manu interface, PVC operation board;
P.I.D digital temperature control system:
Underlying double cylinder simultaneous loop;
Two test start mode of manual and foot pedal;
Independent temperature control of the upper and lower heat seal head;
Various heat seal surfaces made to order;
Encapsulate even-temperature heating pipe by aluminum;
Rapid insertion and separation heating pipe plug;
Anti-scald design;
RS232 port;
Product Application
It is applicable to determine the seal parameters of plastic film, laminated film, paper-plastic composite film, co-extruded film, aluminum laminated films, aluminum foil, aluminum foil composite membrane, etc. The heat-seal surface is flat. Heat seal width can be designed and customized specially according to customer requirements. It also can test different plastic flexible tube.
Technology Standard
ASTM F2029, QB/T 2358(ZBY 28004), YBB 00122003

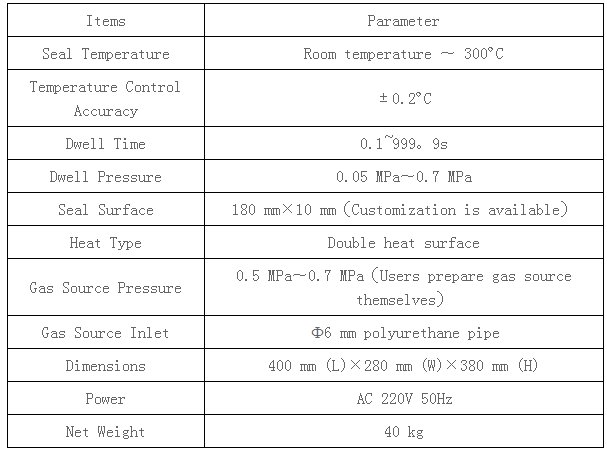

Product Parameters
Product Configuration
Standard: Mainframe, operating manual
