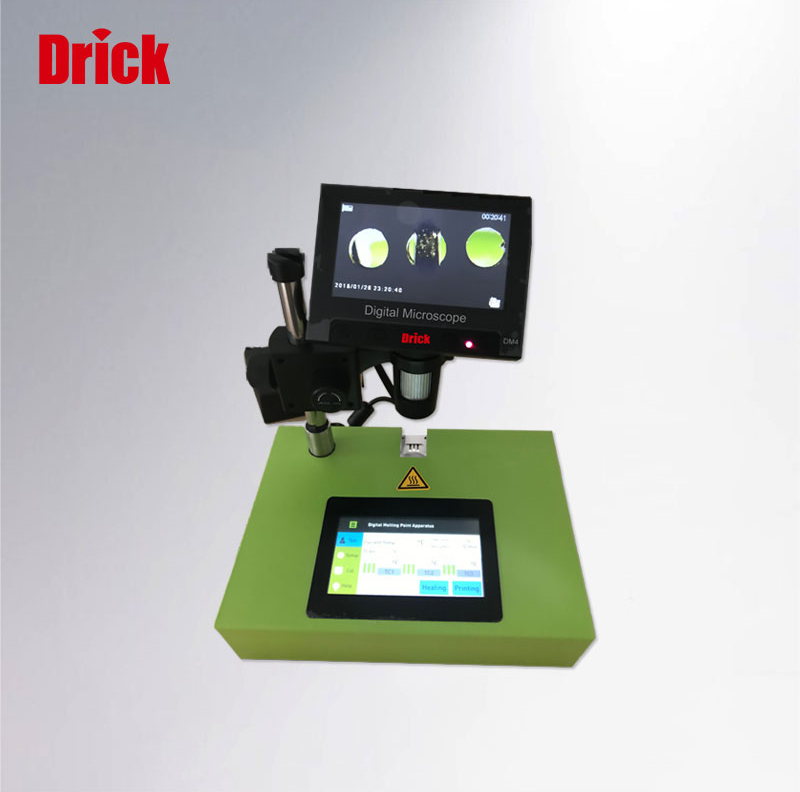

Micro Melting Point Apparatus DRK X-5
Short Description:
DRK X-5 Micro Melting Point Apparatu Micro melting point apparatus combines high-precision temperature control technology and high-definition optical lens magnification technology perfectly. It not only provides users with accurate, stable, and reliable test results, but also offers an efficient and convenient testing experience. With the optical lens magnification technology, users can clearly observe the entire melting process of the sample. Product Features Process 3 samples at a time. C...
DRK X-5 Micro Melting Point Apparatu
Micro melting point apparatus combines high-precision temperature control technology and high-definition optical lens magnification technology perfectly. It not only provides users with accurate, stable, and reliable test results, but also offers an efficient and convenient testing experience. With the optical lens magnification technology, users can clearly observe the entire melting process of the sample.
Product Features
- Process 3 samples at a time.
- Clearly observe the melting process of the sample through video.
- Dual-use for capillary and hot stage methods.
- The heating rate can be arbitrarily set from (0.1 – 10) °C/min.
Product Applications
The melting point apparatus plays a significant role in the chemical industry and pharmaceutical research. It is an essential instrument for the production of food, drugs, fragrances, dyes, and other organic crystalline substances.
Technical Parameters
- Temperature range: Room temperature – 350 °C.
- Resolution: 0.1 °C.
- Heating rate: 0.1 °C – 10 °C (100 gears, stepless adjustable).
- Temperature control method: PID precise temperature control with a fully enclosed furnace body design.
- Cooling method: Natural cooling (no additional cooling means).
- Accuracy: ±0.4 °C (<250 °C); ±0.7 °C (>250 °C).
- Repeatability: When the heating rate is 0.1 °C/min, the melting point repeatability is ±0.3 °C.
- Cooling method: Natural cooling.
- Display method: TFT high-definition true-color screen.
- Data interface: RS232.
- Capillary tube: Outer diameter φ1.6mm, inner diameter φ1.2mm.
- Voltage: 100V – 240V, 50HZ – 60HZ.
- Power: 100W.
- Dimensions: 250mm×250mm×150mm.
- Weight: 1.2kg.
Note: Due to technological advancements, the product information may be subject to change without prior notice. The product shall be subject to the actual product delivered later.
