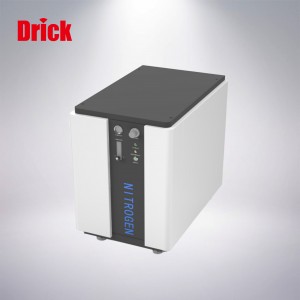

Nitrogen Generators DRK-Eco-P40

Short Description:

DRK-Eco-P40 Nitrogen Generator Instrument Model DRK-Eco-P40 Maximum Nitrogen Purity 99.9% Maximum Nitrogen Output Flow Rate (L/min) 40L Nitrogen Output Pressure 0.6MPa Nitrogen Generation Method PSA Noise Level (1m Away) ≤58dB Retained Liquid None Particle Size 0.01um Water Removal Level Three-level Filtration Level Three-level Outlet Specification Φ6 Quick-connect Fitting (Standard), Optional 1/4 Specification Waste Liquid Outlet Specification Primary Drainage ...

FOB Price: US $0.5 - 9,999 / Set

Min.Order Quantity: 1 Set/Sets

Supply Ability: 10000 Set/Sets per Month

Port: QingDao

Payment Terms: L/C,D/A,D/P,T/T

Send email to us Download as PDF

Product Detail

Product Tags

Feedback (2)

We support our purchasers with ideal high-quality merchandise and significant level company. Becoming the specialist manufacturer in this sector, we now have received loaded practical encounter in producing and managing for Cctv Tester Test Box , Hydraulic Pressure Tester , Common Rail Injectors Repair Tools , To acquire a consistent, profitable, and constant growth by getting a competitive advantage, and by continuously increasing the value added to our shareholders and our employee.

Nitrogen Generators DRK-Eco-P40 Detail:

DRK-Eco-P40 Nitrogen Generator

Instrument Model	DRK-Eco-P40
Maximum Nitrogen Purity	99.9%
Maximum Nitrogen Output Flow Rate (L/min)	40L
Nitrogen Output Pressure	0.6MPa
Nitrogen Generation Method	PSA
Noise Level (1m Away)	≤58dB
Retained Liquid	None
Particle Size	0.01um
Water Removal Level	Three-level
Filtration Level	Three-level
Outlet Specification	Φ6 Quick-connect Fitting (Standard), Optional 1/4 Specification
Waste Liquid Outlet Specification	Primary Drainage Port: φ4 Quick-connect Fitting; Secondary Drainage Port: φ6 Quick-connect Fitting
Power Requirements	AC 220V ±10% 50HZ
Operating Environment	Operating Environment Temperature: 5 – 35℃, Operating Environment Humidity: ≤80%, Operating Environment: Free of large amounts of dust and corrosive gases, Well-ventilated, No Direct Sunlight
Maximum Power	3.2KW
Dimensions (Length × Width × Height, mm)	855×560×865 mm
Net Weight (KG)	150KG

I. Technical Parameters:

II. Instrument Features:

The DRK-Eco-P40 series nitrogen generators can meet the nitrogen requirements of different types of nitrogen blowers, sulfur dioxide distillers, CAD, ELSD and other equipment.
The instrument is equipped with a high-power compressor, enabling fast gas production; it has a built-in large-capacity double-branch stainless-steel gas storage tank, ensuring more stable gas output.
The instrument is equipped with multi-stage filters and a refrigerated drying system, which can ensure that the output gas is clean and has a low dew point.
The instrument adopts a unique noise reduction and shock absorption structure, resulting in low noise during operation; it is equipped with a high-power silent fan and a unique heat dissipation air duct, which can quickly reduce the temperature of the compression chamber and extend the service life of the compressor.
The instrument has a zero-air-consumption automatic drainage function and a maintenance reminder function.
The instrument is equipped with a visible flow meter, allowing real-time monitoring of gas consumption.
The bottom is designed with load-bearing pulley locks, ensuring stable placement and convenient movement.
After installation, it can operate unattended for a long time, continuously supplying gas to the instrument.

Product detail pictures:

We can normally fulfill our respected consumers with our great excellent, great value and good provider due to we're much more specialist and extra hard-working and do it in cost-effective way for Nitrogen Generators DRK-Eco-P40, The product will supply to all over the world, such as: Danish, Bangkok, Sydney, If any product meed your demand, please feel free to contact us. We're sure your any inquiry or requirement will get prompt attention, high-quality products, preferential prices and cheap freight. Sincerely welcome friends all over the world to call or come to visit, to discuss cooperation for a better future!

SHANDONG DRICK INSTRUMENTS CO.,LTD

Company Profile

Shandong Drick Instruments Co., Ltd, is mainly engaged in the research and development, manufacturing and sales of testing instruments.

The company established in 2004.

Products are used in scientific research units, quality inspection institutions, universities, packaging, paper, printing, rubber and plastics, chemicals, food, pharmaceuticals, textiles, and other industries.
Drick pays attention to talent cultivation and team building, adhering to the development concept of professionalism, dedication.pragmatism, and innovation.
Adhering to the customer-oriented principle, solve the most urgent and practical needs of customers, and provide first-class solutions to customers with high-quality products and advanced technology.
