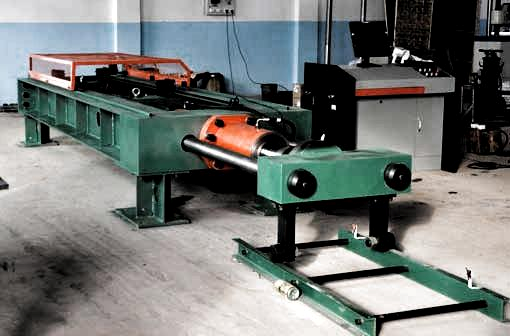

OEM/ODM Factory Tester Smoothness Tester - T0015 – Series Horizontal Tensile Machines – Drick

500kN, 1000kN, 2000kN, 3000kN Computer Controlled Electronic-HydraulicServo Horizontal

Tensile Testing Machine, ISO 9000 qualified.

Brief Introduction
1.This testing machine with integrated steel plate welded frame structure, using single boom

and double-function piston liner to load testing force and fixing specimen with cylindrical pin,

load cell measuring force, several regulation grades of testing space according to length of

specimen.
2. Computer control and display testing force & testing curve and process test data automatically

as settled requirement.
3.This machine is specially used in one by one test for products like lifting straps, chains and ropes
as it operates easily, and uploads slowing and steady and with strong bearing capacity.

Main Structure

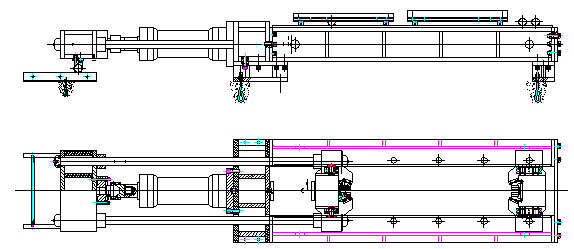

1. Host System:
Host machine consists of hydro-cylinder stand, hydro-cylinder piston, shifting cross-beam, fixed

cross-beam and load cell.

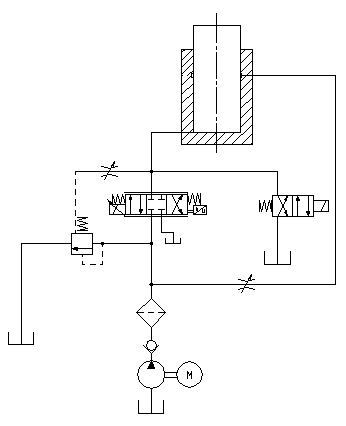

2. Hydraulic power system:
Hydraulic power system is comprised of four parts: oil pump generator system, electric system,

piping system and oil tank (including valve bank and supporting facility).

3. Controlling, measuring and display system:
3.1. Adopt hydraulic testing machine specially used proportion servo valve to control load

of test force, operate easily.
3.2. Computer controls load keeping of test force.
3.3. Precision Load cell measures test force.
3.4. Computer screen displays test data, drawing test force VS time, force VS displacement

curves, curves automatically switches to data for process.
3.5. Have whole file operation and data reserving functions, test data is finished in ASC
