DRK311 Air Permeability Tester is applicable in the measurement of air permeability rate, at various temperatures of plastic films, laminated films, high barrier material, sheets, foils and rubber, including breathable film and tyre seal performance, etc.

Put the pre-conditioned specimen between the upper chamber and chamber, clamp it tightly. First vacuumize the low-pressure chamber (lower chamber), and then the whole system. When the specified degree of vacuum is achieved, shut off the lower test chamber and feed test air to the upper test chamber (high pressure chamber) until certain pressure is reached. Ensure that a constant differential pressure (adjustable) is maintained across the specimen. Hence under the gradient of differential pressure the test air permeates from the high-pressure side to the low-pressure side. By monitoring and measuring the pressure in the low-pressure side we can get various barrier parameters of the tested specimen.
Product features
Manometric method / pressure difference method
Big LCD screen dynamically displays the test data, PVP control panel
Micro-computer control test device and PC monitor the whole test process, which is high automation.
High-precision of test environment control system: constant temperature control and humidity control;
Special soft heating design to avoid shock of common heating device;
Top high accurate sensor to ensure the accuracy of test data;
Professional software support and testing report can be stored in database or Excel formats;
History test data can be queried, compared, printed, plotted and re-analyzed.
Computer control, full automatic testing;
Rapid calibration with reference film;
Temperature and humidity testing port;
RS232 interface;

Product Application
It is professionally applicable to the air permeability rate test of plastic film, composite film, sheets, backing material of Solar, metal foil, waterproof roll, plastic, rubber, paper, glass, metal and other materials used in medical, food, textile and leather.

Technical standard
ASTM D 1434, ISO 2556, ISO 15105-1, JIS K 7126-A, GB 1038, YBB 00082003

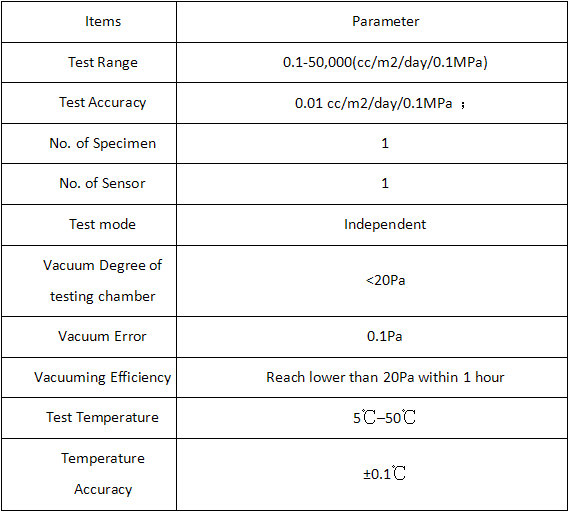

Product parameter

Main fixtures
One mainframe, one operating manual
