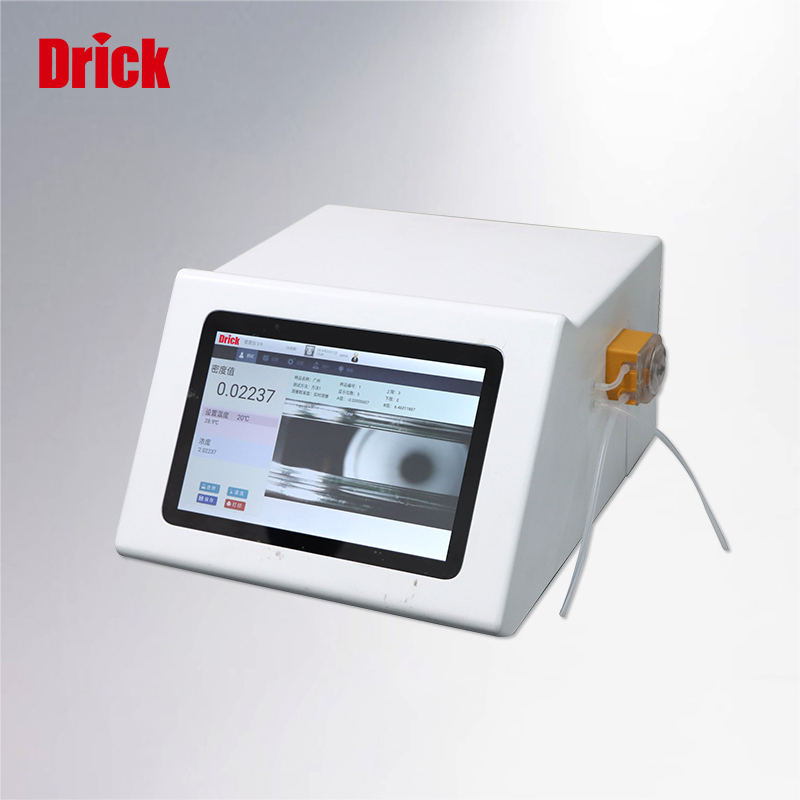

Automatic Densitometer DRK-D70
Short Description:
DRK-D70 Automatic Densitometer DRK-D70 fully automatic densitometer adopts the principle of U-tube oscillation method and perfectly combines Peltier precise temperature control technology and high-definition video camera technology. It not only provides users with accurate, stable and reliable test results but also brings users an efficient and convenient testing experience. The high-definition video allows users to easily observe whether there are bubbles in the sample that may affect the ...
DRK-D70 Automatic Densitometer
DRK-D70 fully automatic densitometer adopts the principle of U-tube oscillation method and perfectly combines Peltier precise temperature control technology and high-definition video camera technology. It not only provides users with accurate, stable and reliable test results but also brings users an efficient and convenient testing experience. The high-definition video allows users to easily observe whether there are bubbles in the sample that may affect the test. With pulse excitation and high-precision detection technology, users can accurately and quickly measure the density of the sample and related parameters.
Product Features:
- Automated integration, realizing one-button measurement function;
- Built-in Peltier temperature control to improve accuracy and stability;
- High-definition video to avoid the influence of bubbles;
- Equipped with an air pump to achieve automatic drying;
- Complies with 21 CFR Part 11, audit trail, pharmacopoeia and electronic signature.
Product Applications:
Pharmaceutical industry: Quality control of raw materials and pharmaceutical intermediates, determination of the specific gravity and density of pharmaceuticals;
Flavor and fragrance industry: Inspection of raw materials for edible flavors, daily flavors, tobacco flavors and food additives;
Petrochemical industry: Detection of crude oil API index, density of gasoline and diesel, monitoring of additive mixing ratio process;
Beverage industry: Measurement of sugar concentration, alcohol concentration, quality control of beer and soft drinks;
Food industry: Quality control of grape juice, tomato juice, fruit syrup, vegetable oil and soft drink processing;
Brewing industry: Detection of alcohol concentration in white wine, yellow wine, red wine, beer, fruit wine and rice wine;
Chemical industry: Testing of concentrations of urea, cleaners, ethylene glycol, acids and alkalis and ammonia water in the chemical industry;
Mechanical manufacturing: Detection of cleaning agents in metal processing, machinery manufacturing, automotive industry and electronic appliances;
Testing institutions: Measurement of liquid density in standard laboratories, legal testing institutions and third-party testing.
Technical Parameters:
| Test Mode | Density, Alcohol Concentration and Custom Formula | Display Method | 10.4-inch FTF Color Touch Screen |
| Measurement Range | 0 g/cm³ to 3 g/cm³ | Data Storage | 64G |
| Resolution | 0.00001g/cm³ | Output Method | USB, RS232, RJ45, SD Card, U Disk |
| Repeatability | ±0.00008g/cm³ | User Management | Yes/Four-level Authority Management |
| Accuracy | ±0.00005g/cm³ | Audit Trail | Yes |
| Sampling Method | Fully Automatic (Compatible with Manual) | Electronic Signature | Yes |
| Observation Method | Video | Custom Method Library | Yes |
| Temperature Control Method | Peltier Temperature Control | Export File Verification High-level Protection MD5 | Yes |
| Temperature Control Range | 5℃ – 65℃ | Printing Method | WIFI Printing, Serial Port Printing |
| Temperature Control Stability | ±0.02℃ | Multiple File Formats for Export | PDF and Excel |
| Dimensions | 480 mm x 320 mm x 200 mm | Power Supply | 110V – 230V 50HZ/60HZ |
| Weight | 8kg | ||
