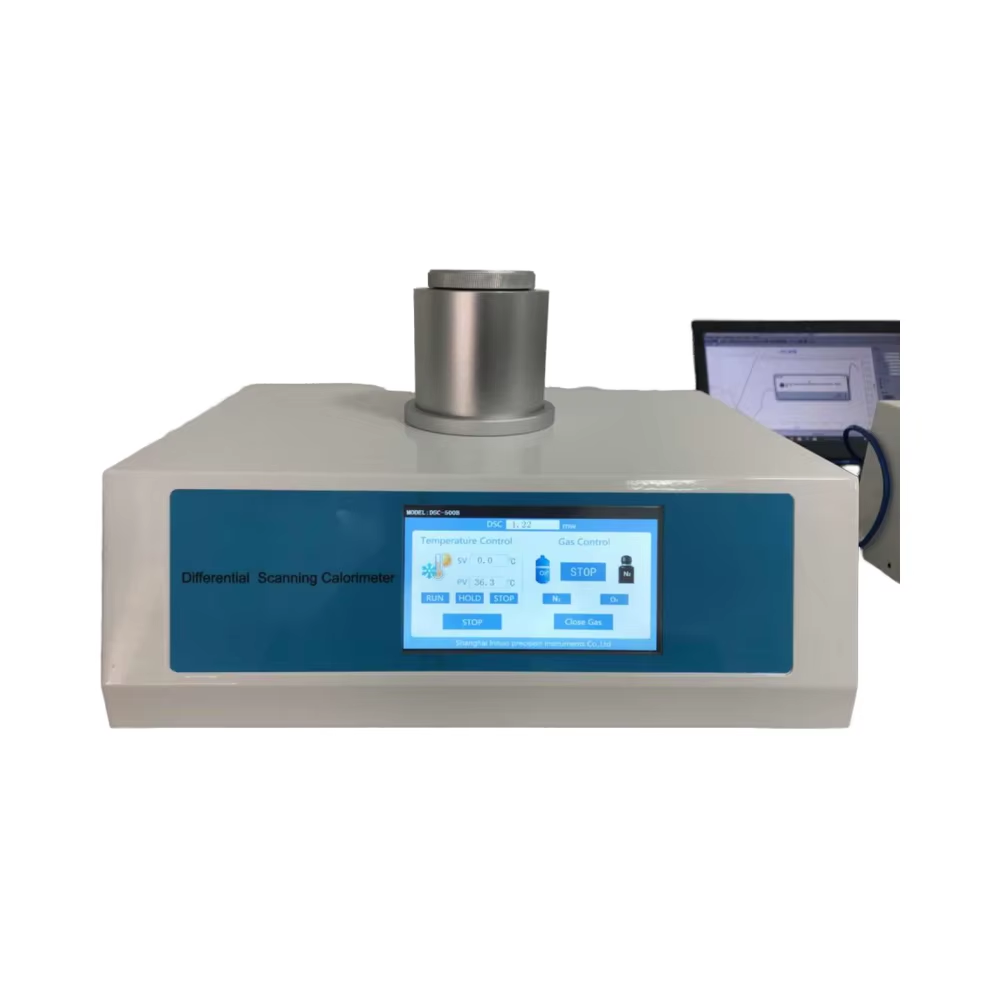

Differential scanning calorimeter DSC-800B

Differential scanning calorimeter

DSC-800B

Summary:

It can be tested for curing, glass transition temperature (tg), cooling crystallization, melting temperature and enthalpy variables, cross-linking degree, product stability, oxidation induction time (OIT) and other indicators.

Conforming the following standards:

GB/T 19466.2- 2009/ISO 11357-2:1999

GB/T 19466.3- 2009/ISO 11357-3:1999

GB/T 19466.6- 2009/ISO 11357-6:1999

Features:

1. Industrial level widescreen touch structure is rich in information, including setting temperature, sample temperature, differential thermal signal, etc.
2. USB communication interface, strong universality, reliable communication, support self-restoring connection function.
3. The furnace structure is compact, and the rate of rising and cooling is adjustable.
4. The installation process is improved, and the mechanical fixation method is adopted to completely avoid the contamination of the internal colloidal of the furnace to the differential heat signal.
5. The furnace is heated by heating wire, compact structure and small size.
6. The double temperature probe ensures the high repeatability of the sample temperature measurement, and adopts the special temperature control technology to control the temperature of the furnace wall to set the temperature of the sample.
7. The gas flow meter automatically switches between two channels of gas, with fast switching speed and short stable time.
8. Standard sample is provided for easy adjustment of temperature coefficient and enthalpy value coefficient.
9. Software support each resolution screen, automatically adjust the computer screen size curve display mode. Support laptop, desktop; Support WIN7, WIN10, WIN11 and other operating systems.
10. Support user edit device operation mode according to actual needs to achieve full automation of measurement steps. The software provides dozens of instructions, and users can flexibly combine and save each instruction according to their own measurement steps. Complex operations are reduced to one-click operations.

Parameters:

1. Temperature range: RT-800℃
2. Temperature resolution:0.01℃
3. Heating rate: 0.1～80℃/min
4. Temperature control mode: Heating, cooling, constant temperature, any combination of three modes cycle use, temperature uninterrupted
5. DSC range: 0～±500mW
6. DSC resolution: 0.01mW
7. DSC sensitivity: 0.1mW
8. Working power: AC 220V 50Hz 300W or other
9. Atmosphere control gas: Two-channel gas control by automatic controlled (e.g. nitrogen and oxygen)
10. Gas flow:0-200mL/min
11. Gas pressure:0.2MPa
12. Gas flow accuracy: 0.2mL/min
13. Crucible: Aluminum crucible Φ6.5*3mm (Diameter * High)，ceramic crucible Φ6.5*3mm (Diameter * High)
14. Calibration standard: with standard material (Indium, tin, zinc, silver), users can adjust the temperature coefficient and enthalpy value coefficient by themselves
15. Data interface: Standard USB interface
16. Display mode: 7-inch touch screen
17. Output mode: computer and printer

Configuration list:

1. DSC machine  1pc
2. Aluminum crucible  300pcs
3. Ceramic crucibles  50pcs
4. Power cords   1pc
5. USB cable   1pc
6. CD (contains software and operations video)  1pc
7. Software-key   1pc
8. Oxygen tube  5m
9. Nitrogen tube   5m
10. Operation manual  1pc
11. Standard sample (contains Indium, tin, zinc)  1set
12. Tweezer   1pc
13. Sample spoon    1pc
14. Custom pressure reducing valve joint and quick joint  2 pair
15. Fuse  4pcs

Physical drawing：

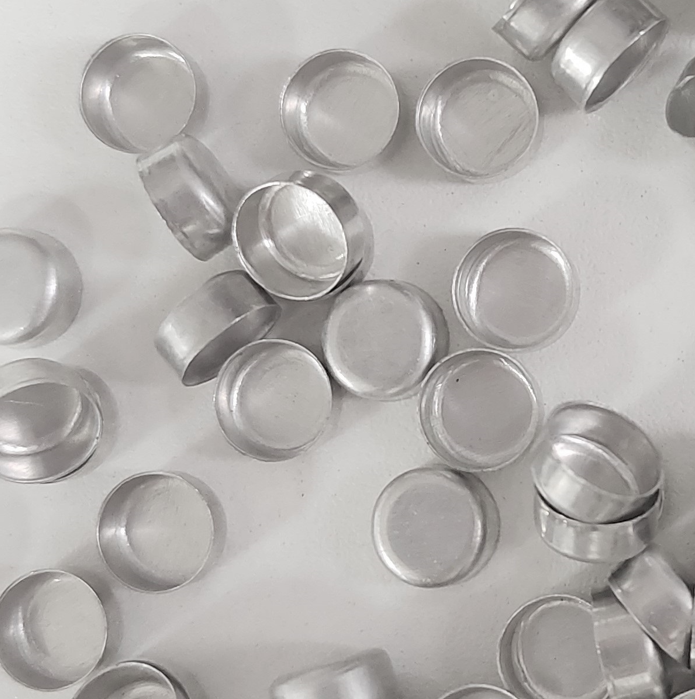

     Aluminum crucibles（Φ6.5*3mm）

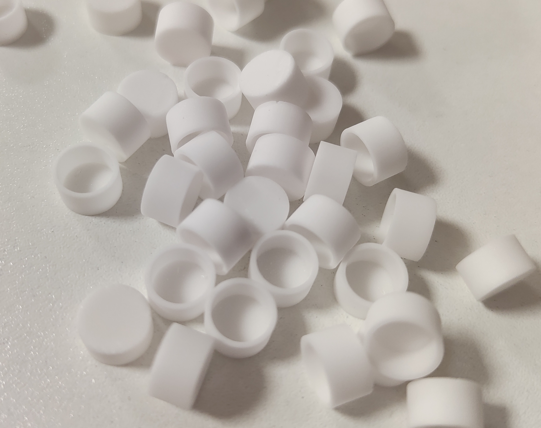

Ceramic crucible Φ6.5*3mm

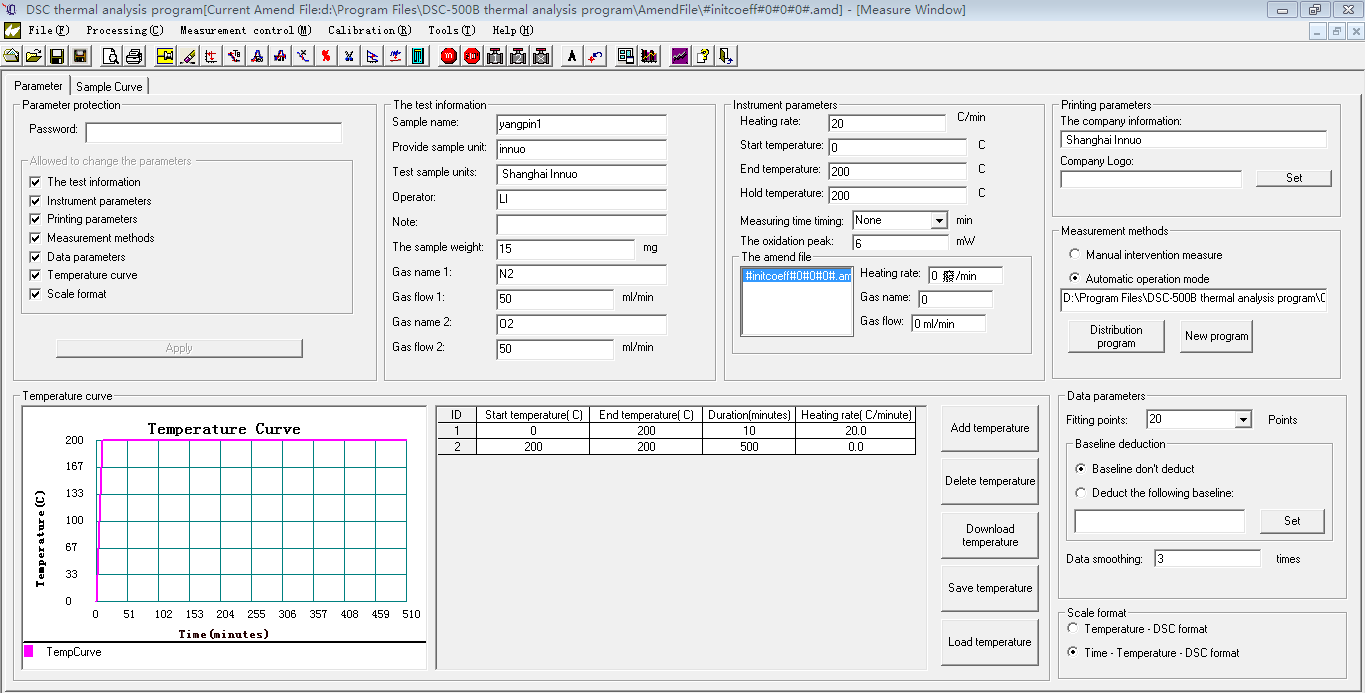

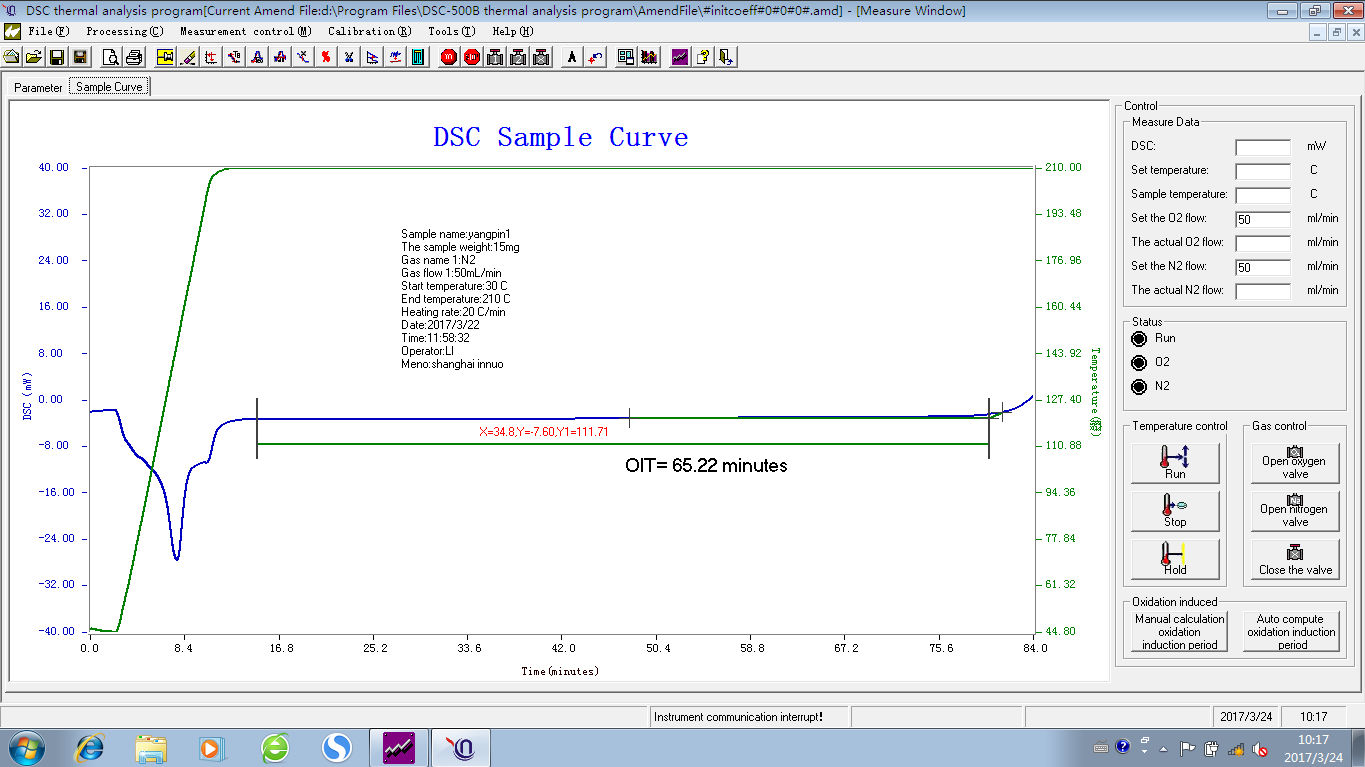

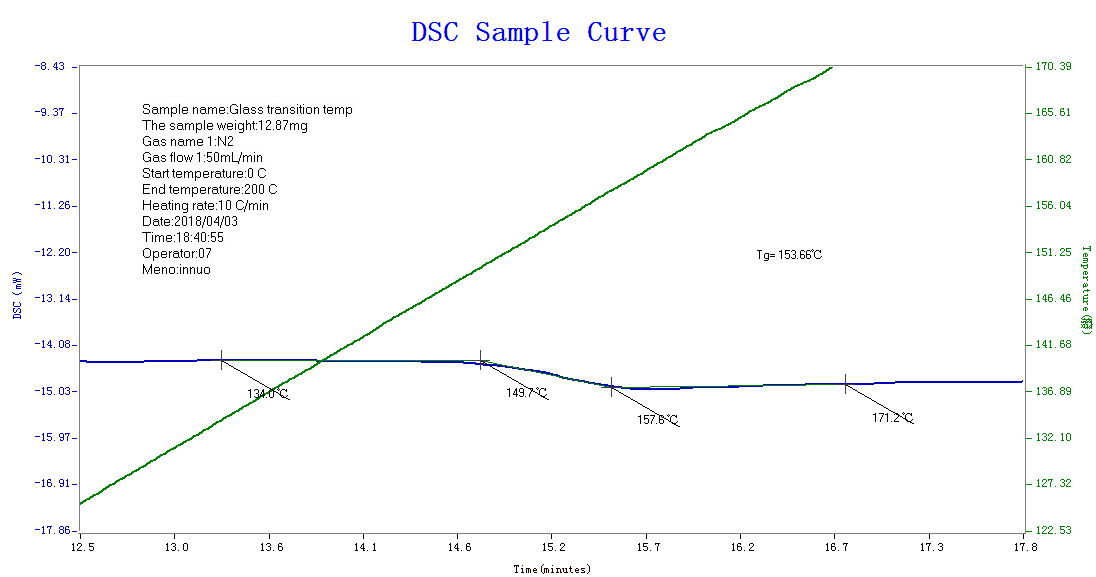

Software screenshots:
