Automatic Polarimeter DRK-Z83

Short Description:

DRK-Z83 Automatic Polarimeter   DRK-Z83 series polarimeter is an instrument for measuring the rotation of substances. Through the measurement of rotation, the specific rotation, international sugar degree, concentration and purity of the substance can be analyzed and determined. Features: 1. Peltier temperature control, improve accuracy and stability; 2. there is rotation/specific rotation/concentration/sugar degree; 3. LED cold light source replaces traditional sodium light lamp and halogen...


  • FOB Price: US $0.5 - 9,999 / Set
  • Min.Order Quantity: 1 Set/Sets
  • Supply Ability: 10000 Set/Sets per Month
  • Port: QingDao
  • Payment Terms: L/C,D/A,D/P,T/T
  • Product Detail

    Product Tags

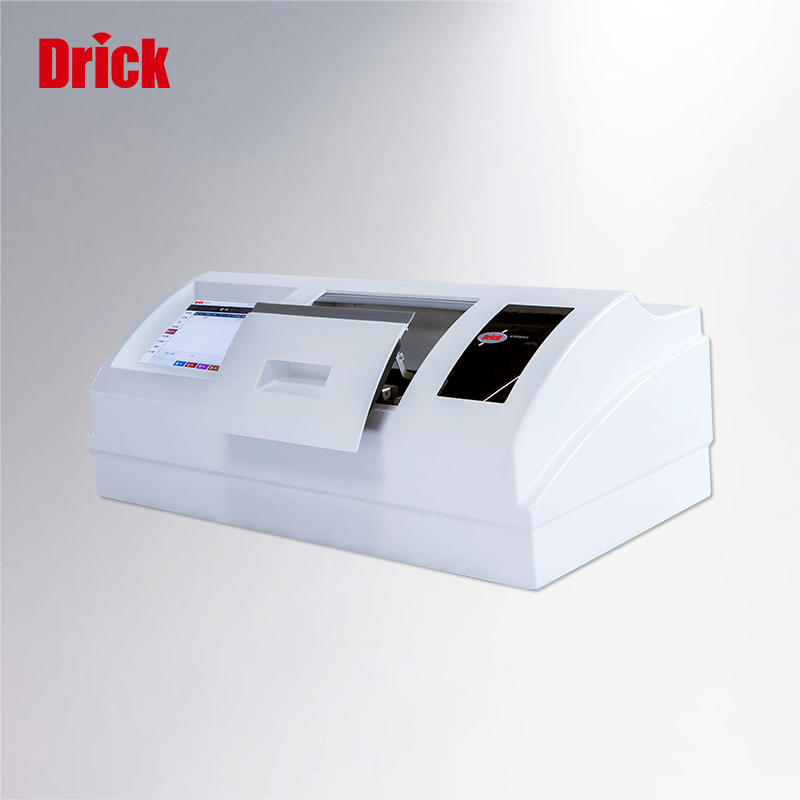

    DRK-Z83 Automatic Polarimeter

    Automatic Polarimeter

    DRK-Z83 series polarimeter is an instrument for measuring the rotation of substances. Through the measurement of rotation, the specific rotation, international sugar degree, concentration and purity of the substance can be analyzed and determined.

    Features:

    1. Peltier temperature control, improve accuracy and stability;

    2. there is rotation/specific rotation/concentration/sugar degree;

    3. LED cold light source replaces traditional sodium light lamp and halogen tungsten lamp;

    4. multi-level rights management, rights can be freely configured;

    5. 8 inch touch color screen, humanized operation interface;

    6. meet 21CFR requirements (electronic signature, data traceability, audit trail, data tamper prevention and other functions);

    7. fully comply with GLP GMP certification standards.

    Product Application:

    Widely used in pharmaceutical, petroleum, food, chemical, flavor, fragrance, sugar and other industries and related universities and research institutes.

    Technical Parameters:

    Measurement mode

    Rotation, specific rotation, concentration, sugar and custom formulas

    Automatic calibration

    have

    Light source

    LED cold light source + high precision interference filter

    Electronic signature

    have

    Operating wavelength

    589.3 nm

    Multifunctional retrieval

    have

    Test function

    Single, multiple, continuous measurement methods

    WIFI printing

    have

    Measuring range

    Rotation ±90°, sugar ±259°Z Audit trail

    have

    Minimum reading

    0.001°

    Cloud service

    optional

    accuracy

    ±0.004°

    MD5 authentication

    optional

    repeatability

    (Standard deviation s) 0.002° (rotation) Custom formula

    optional

    Temperature control range

    10℃-55℃(Partier temperature control) * User Management

    have/Four-level rights management

    Temperature resolution

    0.1 ℃ * The unlock function is disabled

    have

    Temperature control accuracy

    Plus or minus 0.1 ℃ Export multiple file formats

    PDF and Excel

    Display mode

    8 “TFT true color touch screen Communication interface

    USB connection, RS232 connection, VGA, Ethernet

    Standard test tube

    200mm, 100mm ordinary type, 100mm temperature control type (optional length of Hastelloy temperature control tube) Grade of instrument

    0.01 level

    transmittance

    0.01%

    Other optional accessories

    Each capacity 50mm and 200mm long temperature control tube, mouse, keyboard connection, universal printer/wireless network printer

    Data storage
    Audit trail

    32G

    Power source

    220V±22V,50Hz±1Hz,250W



    Data storage
    Audit trail

    have

    Net weight of instrument

    28kg



    Note: Due to technological progress, the information is subject to change without prior notice.
