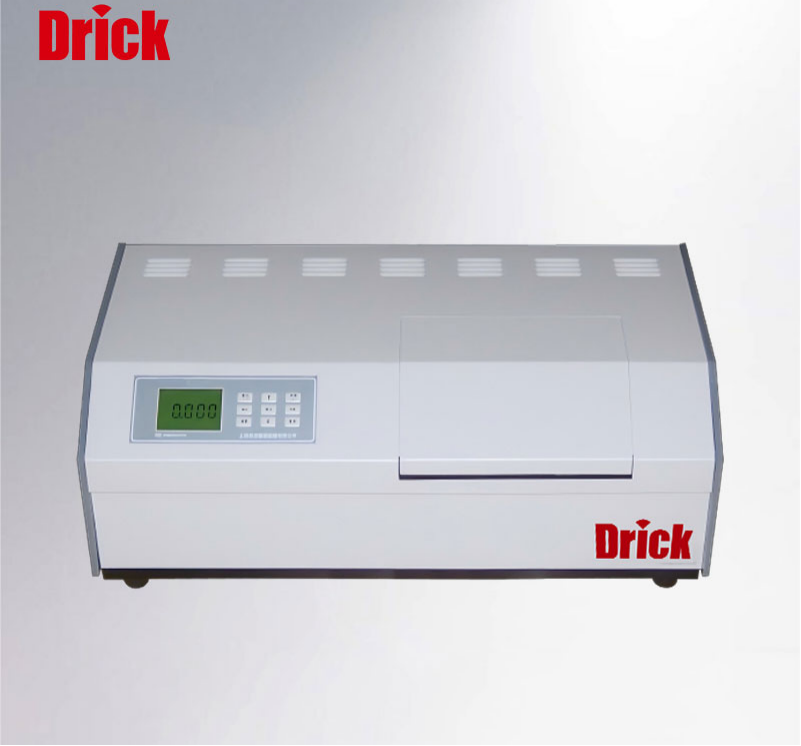

Automatic Polarimeter DRK-Z30

Short Description:

DRK-Z30 Automatic Polarimeter Polarimeter is an instrument for determining the optical rotation of a substance. By measuring the optical rotation of a sample, the concentration, purity, sugar content, or content of the sample can be determined. It is widely used in the food, pharmaceutical, chemical, petroleum, and other industries for quality control, research, and teaching. It features automatic servo control, backlit LCD display, and clear and intuitive test data. It can save the results ...


  • FOB Price: US $0.5 - 9,999 / Set
  • Min.Order Quantity: 1 Set/Sets
  • Supply Ability: 10000 Set/Sets per Month
  • Port: QingDao
  • Payment Terms: L/C,D/A,D/P,T/T
  • Product Detail

    Product Tags

    DRK-Z30 Automatic Polarimeter

    Automatic Polarimeter DRK-Z30

    Polarimeter is an instrument for determining the optical rotation of a substance. By measuring the optical rotation of a sample, the concentration, purity, sugar content, or content of the sample can be determined. It is widely used in the food, pharmaceutical, chemical, petroleum, and other industries for quality control, research, and teaching. It features automatic servo control, backlit LCD display, and clear and intuitive test data. It can save the results of three repeated tests and calculate the average value. It also has an RS232 interface for transmitting data to a PC.

    Product Features:

    1. High precision and repeatability;

    2. Best value for money among similar products.

    Technical Specification:

    Measurement mode

    Rotation, specific rotation, concentration, sugar degree

    Measuring range

    -45° ~ +45° -120°Z ~ +120°Z

    Operating wavelength

    589.3 nm

    Minimum read value

    0.001° 0.01°Z

    accuracy

    ± (0.01°+ measured value ×0.05%)

    Repeatability (maximum deviation)

    ± (0.03°+ measured value ×0.05%) Z

    Minimum transmittance of the sample can be measured

    ≤0.002° ± 0.006°Z

    Display mode

    1%

    External dimension

    Liquid crystal display

    Net weight of instrument

    600mm×380mm×260mm

    Instrument class

    21kg



    Note: Due to technological progress, the information is subject to change without prior notice.
