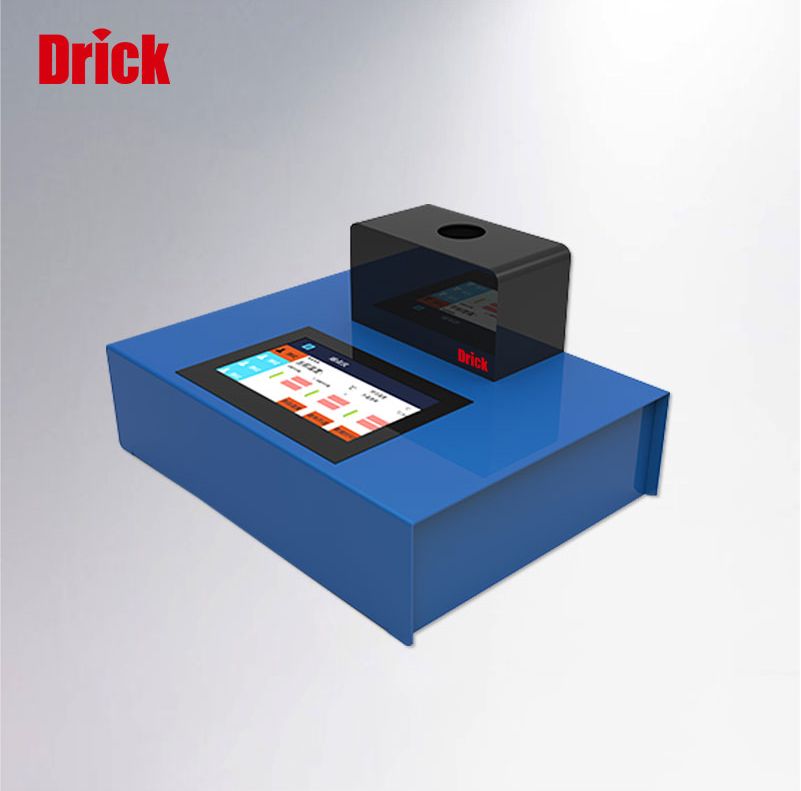

DRK X-4 Micro Melting Point Apparatus
Micro melting point apparatus perfectly combines high-precision temperature control technology and high-definition optical lens magnification technology. It not only provides users with accurate, stable, and reliable test results but also offers an efficient and convenient testing experience. The optical lens magnification technology enables users to clearly observe the entire melting process of the sample.
Features
- Process 3 samples at a time.
- Color touch screen.
- Heating rate can be arbitrarily set from (0.1 – 10) °C/min.
Applications
Melting point apparatus plays a crucial role in the chemical industry and pharmaceutical research. It is an essential instrument for the production of food, drugs, fragrances, dyes, and other organic crystalline substances.
Technical Parameters
- Temperature range: Room temperature – 320 °C
- Resolution: 0.1 °C
- Heating rate: 0.1 °C – 10 °C (100 gears, stepless adjustable)
- Temperature control method: PID precise temperature control, fully enclosed furnace body design
- Accuracy: ±0.4 °C (<250 °C); ±0.7 °C (>250 °C)
- Repeatability: When the heating rate is 0.1 °C/min, the melting point repeatability is ±0.3 °C
- Cooling method: Natural cooling
- Display method: TFT high-definition true color screen
- Data interface: RS232
- Capillary tube: Outer diameter φ1.6mm, inner diameter: φ1.2mm
- Voltage: 100V – 240V, 50HZ – 60HZ
- Power: 100W
- Dimensions: 250mm * 250mm * 150mm
- Weight: 1.2kg
Note: Due to technological advancements, the product information may be subject to change without prior notice. The product shall be subject to the actual product delivered later.
