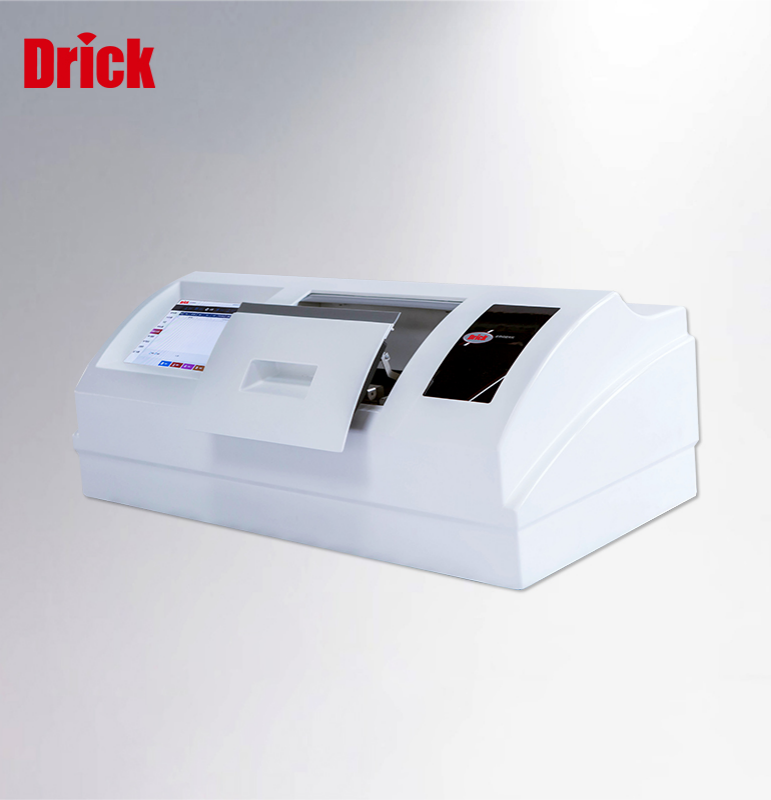

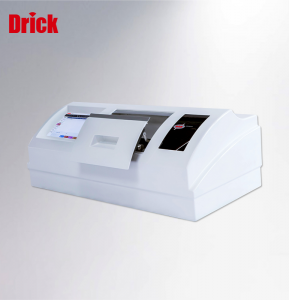

Digital Enhanced AutoPolarimeter (Constant Temperature) DRK-Z830
Short Description:
DRK-Z830 Digital Enhanced AutoPolarimeter (Constant Temperature) DRK-Z830 Series polarimeter is an instrument for determining the rotation of substances. Through the measurement of rotation, the concentration, content and purity of the substance can be analyzed and determined, and it is widely used in pharmaceutical, petroleum, food, chemical, flavor, fragrance, sugar and other industries and related universities and research institutes. Product features: 1、Built-in Peltier temperature con...
DRK-Z830 Digital Enhanced AutoPolarimeter (Constant Temperature)
DRK-Z830 Series polarimeter is an instrument for determining the rotation of substances. Through the measurement of rotation, the concentration, content and purity of the substance can be analyzed and determined, and it is widely used in pharmaceutical, petroleum, food, chemical, flavor, fragrance, sugar and other industries and related universities and research institutes.
Product features:
1、Built-in Peltier temperature control for improved accuracy and stability;
2、There are rotation/specific rotation/concentration/sugar degree and custom mode;
3、LED cold light source replaces traditional sodium light lamp and halogen tungsten lamp;
4, support network printing, support data statistical retrieval;
5, multi-level rights management, rights can be freely configured;
6, 8 inch touch color screen, humanized operation interface;
7, meet 21CFR requirements (electronic signature, data traceability, audit trail, data tamper prevention and other functions);
8, fully comply with GLP GMP certification standards.
Technical Parameters:
Measurement mode | Rotation, specific rotation, concentration, sugar and custom formulas | Automatic calibration | have(1 standard tube) |
Light source | LED cold light source + high precision interference filter | Electronic signature | have |
Operating wavelength | 589.3 nm | Multifunctional retrieval | have |
Test function | Single, multiple, continuous measurement methods | Universal printer WIFI printing (with one HP printer as standard) | |
Measuring range | Rotation ±90° Sugar content ±259°Z |
Method base | have |
Minimum reading | 0.001°(0.0001° optional) | Cloud service | have |
Accuracy | ±0.002° | MD5code verification | have |
repeatability | (standard deviation s)0.002°(optical rotation) | Custom formula | have |
Temperature control range | 10℃-60℃(Peltier) | User management | have/Four-level rights management |
Temperature resolution | 0.01℃ | The unlock function is disabled | have |
Temperature control accuracy | ±0.03℃ | Export multiple file formats | PDF and Excel |
Display mode | 8 inch TFT color touch screen | Communication interface | USB connection, RS232 connection, VGA, Ethernet |
Standard test tube | 200mm, 100mm ordinary type, 100mm temperature control type (optional length of Hastelloy temperature control tube) | Grade of instrument | 0.01 level |
transmittance | 0.01% | Other optional accessories | Each capacity 50mm and 200mm long temperature control tube, mouse, keyboard connection, universal printer/wireless network printer |
Data storage | 64G(Expandable up to 256G) | Power source | 220V±22V,50Hz±1Hz,250W |
Audit trail | have | Net weight of instrument | 28kg |
Note: Due to technological progress, the information is subject to change without prior notice.
