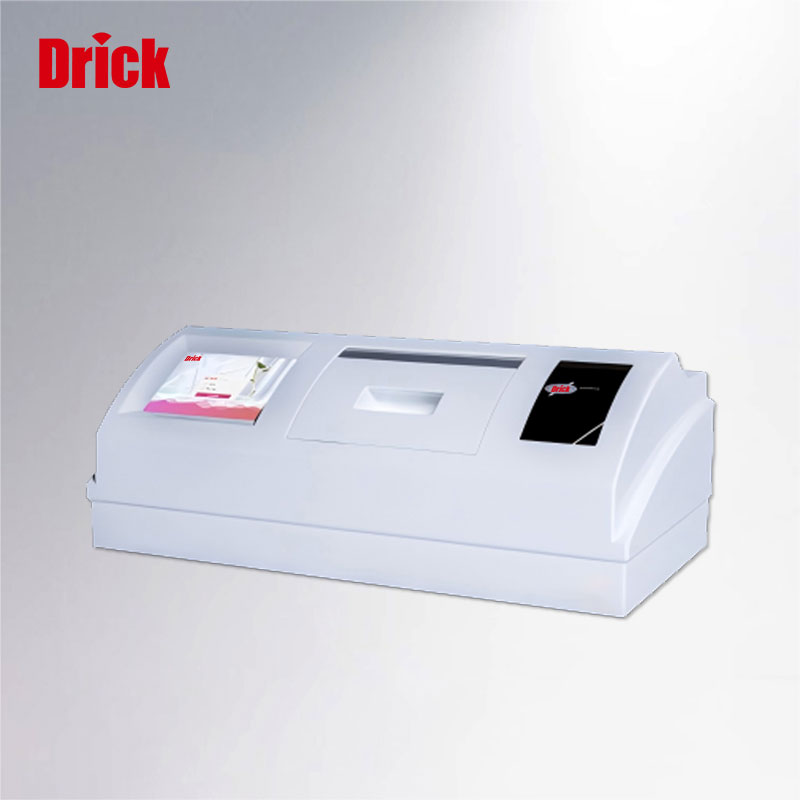

    DRK-Z620 Automatic Polarimeter (Constant Temperature)

    Automatic Polarimeter (Constant Temperature) DRK-Z620

    Polarimeter is an instrument for measuring the rotation of a substance. Through the determination of the tightening photometry, the concentration, content and purity of the substance can be analyzed and determined, which is widely used in sugar, pharmaceutical, petroleum, food, chemical and other industrial departments and relevant colleges and universities and scientific research units.

    Product Advantage



    1. LED cold light source replaces traditional sodium light lamp and halogen tungsten lamp;

    2, can be used for rotation, specific rotation, concentration, sugar

    Features:

    1, the service life of more than 100,000 hours of LED light source, instead of the traditional sodium light lamp and halogen tungsten lamp, make up for the short life, easy to damage and other shortcomings;

    2, the measurement range is upgraded to ±89° (rotation), improve the limitation of the measurement sample, improve the selectable measurement sample;

    3, the control is systematic, highly integrated, fully automated, easy to operate.

    4, wide color touch screen and innovative WINDOWS interface software make instrument control and data reading more convenient, to meet the use of high-end users.

    5, the whole machine through the laboratory analysis instrument TART quality certification standard and CE certification.

    Technical Parameters:

    Measuring Mode  Rotation, specific rotation, concentration, sugar degree Light source LED cold light source + high precision interference filter
    measurement range optical rotation ±89.99°sugar degree ±257°Z *operating wavelength 589.3nm
    error of indication  ±0.01°(﹣45°≤optical rotation≤+45°);
    ±0.02°(optical rotation<﹣45°or optical rotation>+45°)
    Communication interface USB,RS232
    Minimum reading 0.001(optical rotation) Data storage capacity 1000
    Temperature display range 0-100℃ * Display mode 7 inch TFT color touch screen
    repeatability (standard deviation s)0.002°(optical rotation) Data storage 1000 groups
    *Minimum transmittance of the sample can be measured 1% Power source 220V±22V,50Hz±1Hz,250W
    Net weight of instrument 24kg

    Note: Due to technological progress, the information is subject to change without prior notice.
