Digital Enhanced AutoPolarimeter (Constant Temperature) DRK-Z83P
Short Description:
DRK-Z83P Digital Enhanced AutoPolarimeter (Constant Temperature) DRK-Z83P series Polarimeter is an instrument for determining the optical rotation of substances. By measuring the optical rotation, the concentration, content, and purity of a substance can be analyzed and determined. It is widely used in the pharmaceutical, petroleum, food, chemical, fragrance, flavor, sugar, and other industries, as well as related universities and research institutes. Product features: 1. Built-in Peltier ...
DRK-Z83P Digital Enhanced AutoPolarimeter (Constant Temperature)

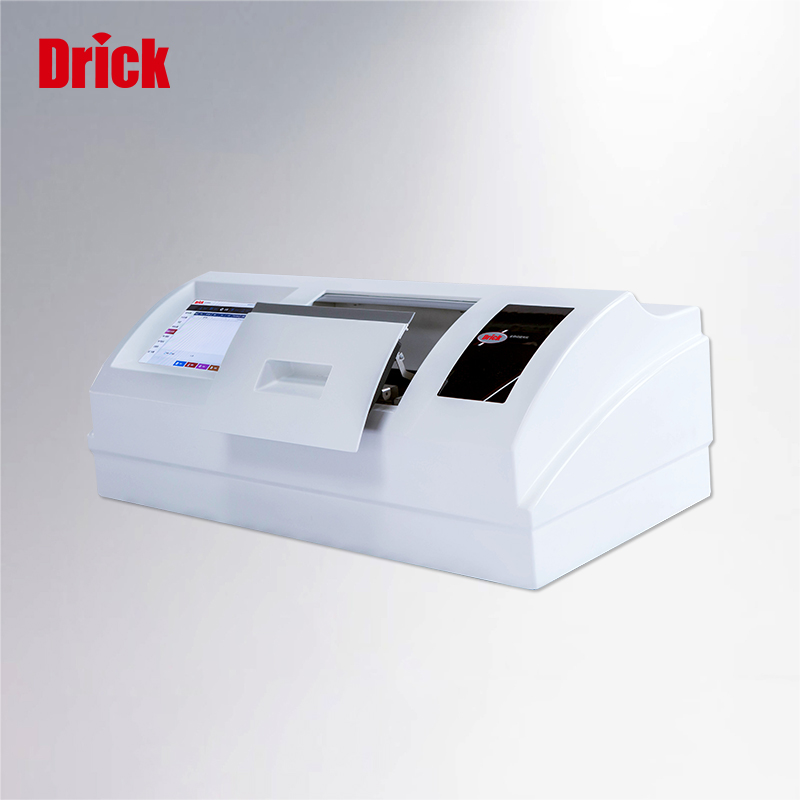

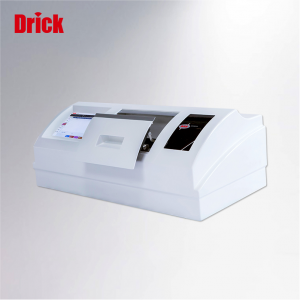

DRK-Z83P series Polarimeter is an instrument for determining the optical rotation of substances. By measuring the optical rotation, the concentration, content, and purity of a substance can be analyzed and determined. It is widely used in the pharmaceutical, petroleum, food, chemical, fragrance, flavor, sugar, and other industries, as well as related universities and research institutes.
Product features:
1. Built-in Peltier temperature control for improved accuracy and stability;
2. Available in specific rotation/specific optical rotation/concentration/sugar content and custom modes;
3. LED cold light source replaces traditional sodium lamp and halogen lamp;
4. 100MM, 50mm long ultra-micro volume temperature-controlled tubes;
5. Multi-level permission management, with permissions freely configurable;
6. 8-inch touch screen with a user-friendly operation interface;
7. Complies with 21CFR requirements (electronic signature, data traceability, audit trail, data tamper-proofing, etc.);
8. Fully compliant with GLP GMP certification standards.
Technical Parameters:
Measurement mode |
Rotation, specific rotation, concentration, sugar and custom formulas |
Automatic calibration |
have |
Light source |
LED cold light source + high precision interference filter |
Electronic signature |
have |
Sample size |
The minimum is 0.8ml microsample |
Method base |
have |
Operating wavelength |
589.3 nm |
Multifunctional retrieval |
have |
Test function |
Single, multiple, continuous measurement methods |
WIFI printing |
have |
Measuring range |
Rotation ±90° Sugar content ±259°Z |
Cloud service |
optional |
Minimum reading |
0.001° |
MD5 code authentication |
optional |
accuracy |
±0.004° |
Custom formula |
optional |
repeatability |
(Standard deviation s) 0.002° (rotation) |
Audit trail |
have |
Temperature control range |
10℃-55℃(Partier temperature control) |
User management |
have/Four-level rights management |
Temperature resolution |
0.1 ℃ |
* The unlock function is disabled |
have |
Temperature control accuracy |
Plus or minus 0.1 ℃ |
Export multiple file formats |
PDF and Excel |
Display mode |
8 inch TFT true color touch screen |
Communication interface |
USB connection, RS232 connection, VGA, Ethernet |
Standard test tube |
200mm, 100mm ordinary type, 200mm temperature control type (optional length of Hastelloy temperature control tube) |
Grade of instrument |
0.01 level |
transmittance |
0.1% |
Other optional accessories |
Each capacity 50mm and 200mm long temperature control tube, mouse, keyboard connection, universal printer/wireless network printer |
Data storage |
32G |
Electric source |
220V±22V,50Hz±1Hz,250W |
Audit trail |
have |
Net weight of instrument |
28kg |
Note: Due to technological progress, the information is subject to change without prior notice.
