Scratch Resistance Tester DRK-LT-111

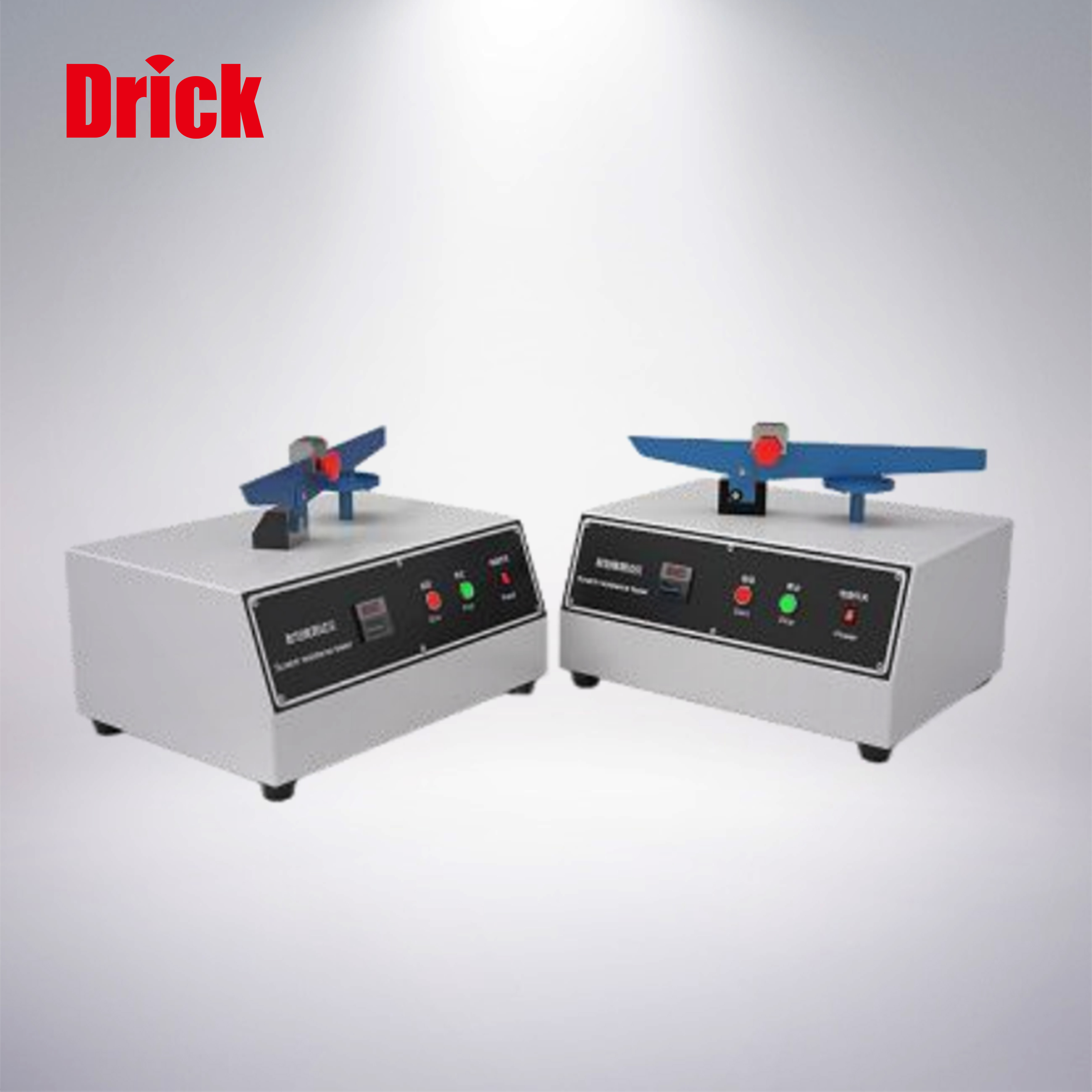

DRK-LT-111 Scratch Resistance Tester

Purpose：

The application fields include rigid organic materials, coating adhesives, powder coatings, anodized materials, soft metals, plastics, and glass, etc. It can also be used to test the quality of adhesives for the same type of materials and protective coatings, as well as the ultimate performance of similar materials. The instrument consists of a balance bar, fixed weights, adjustable weights, a sample – carrying disc, etc. Before the test, the height of the balance bar needs to be adjusted according to the thickness of the sample so that when the scratch head is installed in the middle of the balance bar and the sample is placed on the sample – carrying disc, the balance bar can remain horizontal. During the test, the fixed weights remain stationary, and the adjustable weights are moved to control the weight pressing on the sample. As the sample – carrying disc rotates counter – clockwise, the scratch head leaves arc – shaped scratches on the surface of the sample.

Compliant Standards：

lAS/NZS AS2924.2

lASTM C217 GB/T15102

lBS EN 438-2 GB/T17657

lBS EN 13310：2003

lBS EN 14323 EN15186

lDIN 68861-4 GB/T18102

lDIN 53799

BS EN 14688:2006

TSF7365 5.2.12-2009

Principles：

Place the specimen in the groove of the thickness control device and adjust the position of the nut. Install the specimen on the rotatable circular platform and fix it with the pressing block and nut. Install the scratch head in the corresponding groove in the middle of the weighing rod. Rotate the balance rod so that the head of the scratch head just touches the specimen. Start the instrument, the disc moves, and the scratch head leaves scratches on the surface of the specimen.

Technical Parameters:

This part consists of a thickness control device, a height – adjusting nut, a front – to – back position – adjusting nut, and a balance rod. The height of the balance rod is determined by the thickness of the specimen. Before the test, insert the specimen into the groove of the thickness control device and adjust the height – adjusting nut so that the specimen fits exactly in the groove. When the specimen is installed on the circular sample – carrying platform and the friction head is installed in the balance rod with its head touching the specimen, at this time, the balance rod is basically parallel and only needs fine – tuning (check the levelness by placing a spirit level).
Test Objects: Rigid organic materials, coating adhesives, powder coatings, anodized materials, soft metals, plastics, and glass, etc.

1. Disc Movement Direction: Counter – clockwise or clockwise
2. Disc Movement Speed: It can be arbitrarily selected and adjusted, with a default of 5 rpm
3. Load: 0 – 500g, with each division being 10g
4. The distance between the test head and the specimen can be arbitrarily adjusted by adjusting the bolt
5. Use the spirit level to adjust the balance rod to be horizontal
6. Power Supply: AC 220V 50HZ
7. External Dimensions: 660mm * 311mm * 365mm (Width * Depth * Height)
8. Weight: Approximately 18kg
9. Measuring Range: 540g, Accuracy: ±2

• In some standards, the test results are required to be concentric circles with different radii. Adjust the front – to – back position – control nut to control the distance between the scratch head and the center of the sample – carrying disc, thus creating scratches with different radii.
• Pressure – regulating Components: This part includes fixed weights, movable weights, and a balance rod. The balance rod is marked with scales from 0 – 500, and each scale division represents a pressure of 10g. When in use, align the middle marking line of the movable weight with the scale line on the balance rod, and the pressure applied to the surface of the specimen is the value indicated by the scale line.
• Sample – carrying Components: This part consists of a sample – carrying disc, fixing plates, and fixing nuts. Place the specimen on the sample – carrying disc, press it with the fixing plate, and then fix it with the nut.
• Control Components: It includes a counter, a start button, a pause button, and a power switch.

Height adjusting nutAdjusting screw in front and rear position
The mother

Place the specimen at the thickness control device and adjust the upper – end bolt so that the upper surface of the specimen contacts the lower surface of the thickness control device. Remove the specimen, place it on the test disc, tighten the nut on the specimen. Lower the balance rod and place the spirit level on the balance rod to check if the balance rod is horizontal. If it is not horizontal, adjust the rear – end bolt until the bubble of the spirit level is centered, indicating a horizontal state.

   Horizontal bubble

Move the right – end weight to the required pressure position and tighten the bolt at the back of the weight to prevent it from moving during operation.

Power on the device, select the number of operating cycles for the experiment, and press the start button to conduct the test.

Accessories:

1. Balance rod
2. Balance weight
3. Weights
4. Spirit level
5. Test clamp
6. Power cord
7. Nameplate and instruction manual
